DN-20GAV14-EZ15 / DCN-20BCV1 Welding Soldering Tips for Apollo Seiko Soldering Robot Apollo Seiko DCN Tips Black+ Silver

Apollo Seiko Soldering Tip is high quality robotic soldering iron tip designed for the use of automated soldering machine. The soldering tips can make the robots get the most out of automated soldering, working stable and low faulty soldering joints. providing increased output and quality through a repeatable robotic process.
.
We produce and sell Apollo Seiko repalcement soldering tips, available types: DS, DN, TS, TM and quick change type (DCx) series tips.

DS iron cartridge: 101mm length for DC48V
DN iron cartridge: 101mm length for DC48V, sleeve with N2 supply
TM iron cartridge: 145mm length for AC100V
TS iron cartridge: 101mm length for AC100V
DM iron cartridge: 145mm length for DC48V

Specifications of Apollo Seiko Robotic Soldering Tips N-20GAV14-EZ15 / DCN-20BCV1

• Two side tinning
• DC48V, Total Length: 101mm
• Diameter: 6.4mm

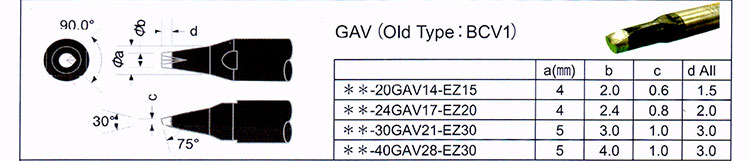

• Tip width: a: 4mm, b: 2.0mm
• Tip thickness (c): 0.6mm
• Tin area, two side (d): 1.5mm
• Choice: Black Tip
• Lead Time: 1~2 Weeks
• Material: copper
• Apllication: For all Apollo Seiko soldering robot
• Advantage: up to 300 degree centigrade in 6 seconds
• Custom-made service available

Advantages of YINATE Soldering Tips

Features of Apollo Seiko Soldering Robot Tip

*Designed to meet Lead free soldering requirements.
*A high precision thermocouple is built in to the Top of the iron tip, a minimal temperature drop can be quickly detected and recovered, temperature can reach 300° C within 6 seconds.
*Quick change cartridge type iron provides for consistent location and height adjustment with each tip change.

Apollo soldering Robot Tips Standard Model

• D series: 08D, 10D, 13D, 16D, 20D, 24D, 30D, 40D, 50D, 60D, 80D
• D-2 series: 08D-2, DV10D-2, 13D-2, 16D-2, 20D-2, 24D-2, 30D-2, 40D-2, 50D-2, 60D-2
• DV2 series: 13DV2, 162, 20DV2, 24DV2, 30DV2, 40DV2, 50DV2
• DV1 series: 10DV1, 13DV1, 16DV1, 20DV1, 24DV1, 30DV1, 40DV1, 50DV1
• BCV1 series: 20BCV1, 24BCV1, 30BCV1, 40BCV1
• DV1-2 series: 10DV1-2, 13DV1-2, 16DV1-2, 20DV1-2, 24DV1-2, 30DV1-2, 40DV1-2, 50DV1-2, 60DV1-2, 80DV1-2
• PC series: 10PC, 13PC, 16PC, 20PC, 24PC, 30PC, 40PC, 50PC, 60PC
• PVC series: 20PVC2, 24PVC2, 30PVC2, 40PVC2, 50PVC2
• FPR series: 16FPR, 20FPR, 24FPR, 30FPR, 40FPR, 50FPR
• R series: 20R, 24R, 30R, 40R, 50R
• UPL series: 16UPL, 22UPL, 32UPL

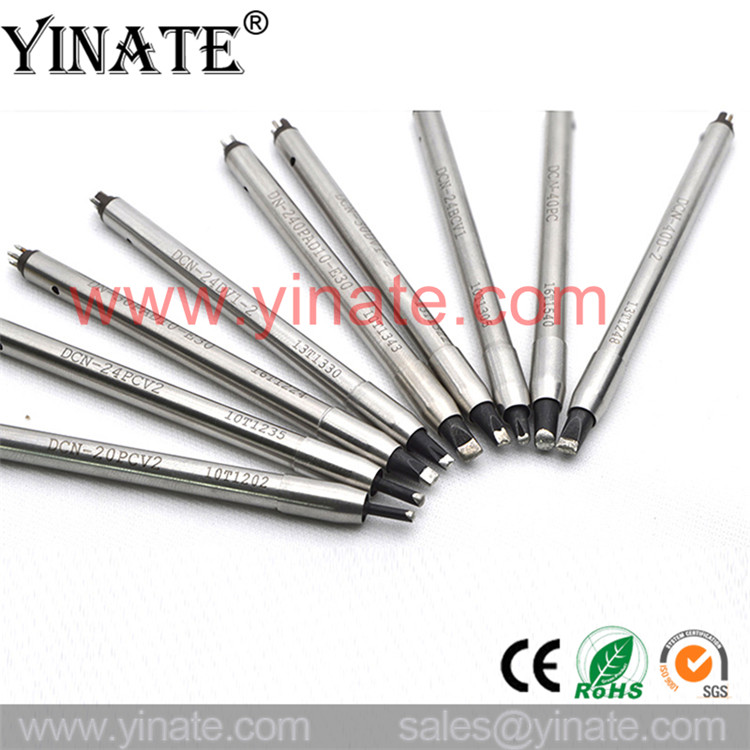

Product Pictures of Soldering Tips DN-20GAV14-EZ15 / DCN-20BCV1

DN-20GAV14-EZ15 / DCN-20BCV1 Welding Soldering Tips for Apollo Seiko Soldering Robot Apollo Seiko DCN Tips Black+ Silver Images
