Apollo Seiko Robotic Soldering Iron Tip DS-30PSW15-F-AZ / DCS-30UPL Soldering Tips Cartridge for Apollo Seiko Soldering

The APOLLO soldering tips mainly including TM(AC110V, the total length is 145mm), TS(AC110V, the total length is 101mm), DCM(AC48V, the total length is 145mm), DS(old type: DCS)(AC48V,the total length is 101mm), DN(old type: DCN): AC48V, total length 101mm, with N2 sleeve)

http://www.yinate.com/?id=26

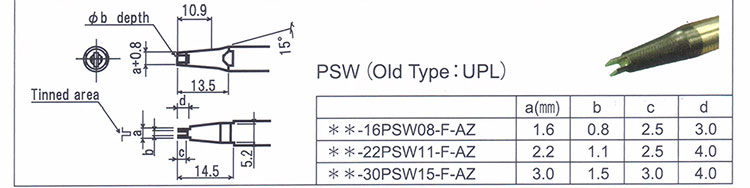

Specifications of Apollo Seiko DS-30PSW15-F-AZ/ DCS-30UPL Soldering Robot Tips

• Two side tinning
• DC48V, Total Length: 101mm
• Diameter: 6.4mm
• Tip width: a: 3.0 mm, b: 1.5 mm
• Tip thickness (c): 3.0mm
• Tin area, two side (d): 4 mm
• Choice: Black Tip
• Lead Time: 1~2 Weeks
• Material: copper
• Apllication: For all Apollo Seiko soldering robot
• Advantage: up to 300 degree centigrade in 6 seconds
• Custom-made service available

Advantages of YINATE Soldering Tips

Apollo Soldering Robot Tips Standard Models

• D series: 08D, 10D, 13D, 16D, 20D, 24D, 30D, 40D, 50D, 60D, 80D
• D-2 series: 08D-2, DV10D-2, 13D-2, 16D-2, 20D-2, 24D-2, 30D-2, 40D-2, 50D-2, 60D-2
• DV2 series: 13DV2, 162, 20DV2, 24DV2, 30DV2, 40DV2, 50DV2
• DV1 series: 10DV1, 13DV1, 16DV1, 20DV1, 24DV1, 30DV1, 40DV1, 50DV1
• BCV1 series: 20BCV1, 24BCV1, 30BCV1, 40BCV1
• DV1-2 series: 10DV1-2, 13DV1-2, 16DV1-2, 20DV1-2, 24DV1-2, 30DV1-2, 40DV1-2, 50DV1-2, 60DV1-2, 80DV1-2
• PC series: 10PC, 13PC, 16PC, 20PC, 24PC, 30PC, 40PC, 50PC, 60PC
• PVC series: 20PVC2, 24PVC2, 30PVC2, 40PVC2, 50PVC2
• FPR series: 16FPR, 20FPR, 24FPR, 30FPR, 40FPR, 50FPR
• R series: 20R, 24R, 30R, 40R, 50R
• UPL series: 16UPL, 22UPL, 32UPL

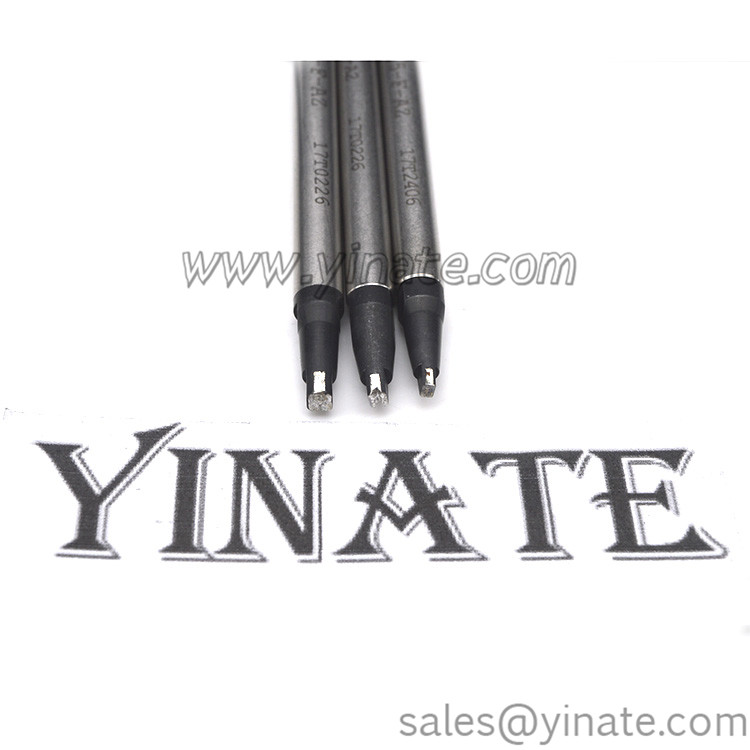

Apollo Seiko Robotic Soldering Iron Tip DS-30PSW15-F-AZ / DCS-30UPL Soldering Tips Cartridge for Apollo Seiko Soldering Images
